decoiler for sale

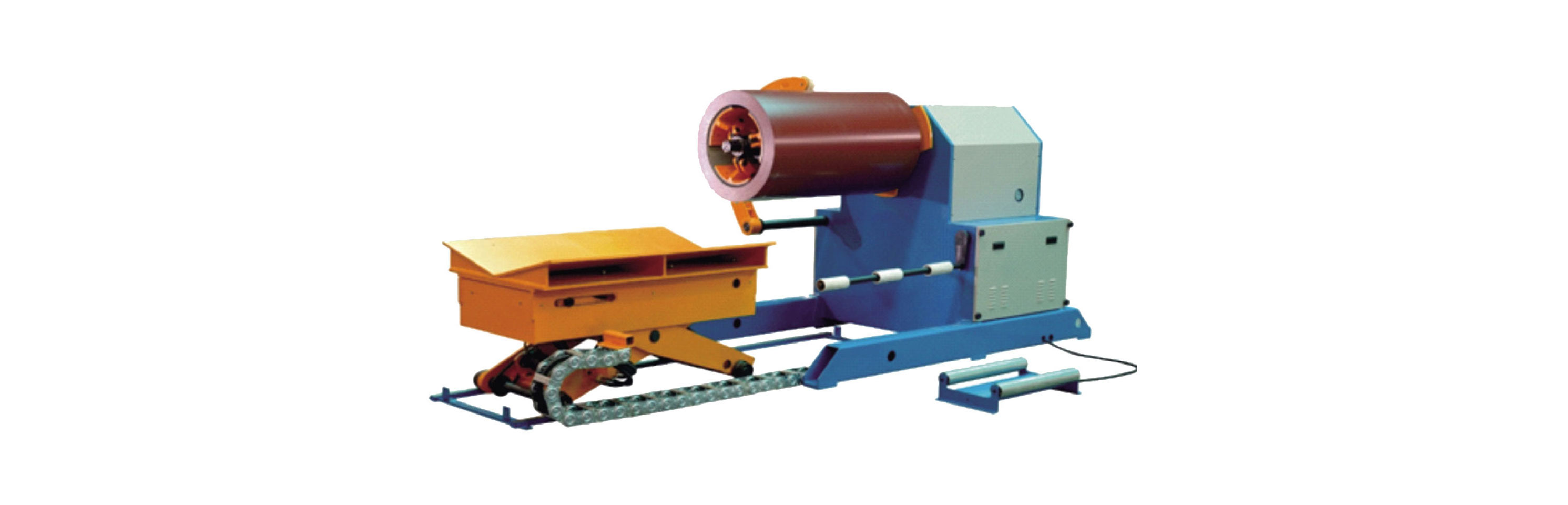

Our uncoiler machine is suitable for the uncoiling and conveying of thin metal sheets. It is the auxiliary equipment for roll forming machines. The uncoiler for sale primarily consists of the main machine, tension device, arm hold down device, ultrasonic control device, electric control system and independent hydraulic system. Our steel decoiler is innovative in design, and has received 2 patents of the utility model. Automatic material loading and hydraulic tensioning are available.

Technical Specifications for Uncoiler




Uncoiling motor power

2.2 kW

Hydraulic station power

3 kW

Uncoiling speed

Less than 50 m/min

Suitable coil inside diameter

φ508/φ610 mm

Suitable coil width

1000~1250 mm

Suitable coil outside diameter

Less than φ1300 mm

In case of any contradictory, performance parameter is put in the first place.

Rated load capacity

Less than 6 t

Outline dimensions (LXWXH)

2600×1400×1700 mm
